Canadian Blower

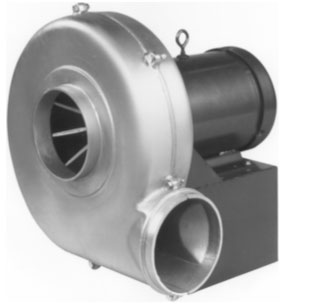

Baby Pressure Blowers are designed for
low-capacity, low-pressure industrial processes such as glove boxes,
combustion
air, dust collection, fume control, carbon systems, quench cooling,
oven
exhaust and conveying. The open radial wheel design makes it ideally
suited for
both clean air and material handing applications.
BLOWER DESIGN
FEATURES:
• Pressures to
23" WG, flows to 4,000 CFM.
• Temperatures
to 600°F.
• Compact
pressure blower fans offer stable pulsation free
performance from wide-open to closed-off.
• Standard
radial wheel for optimum efficiency. Either
welded steel, aluminum or stainless steel wheel construction is
available in
straight radial wheel design. Open front-plate configuration makes this
wheel
ideally suited for both clean air and material handling air moving
applications. Advanced blower wheel and aerodynamic fan housing design
with
round outlet combine for air-handling efficiency superior to
conventional
radial fan wheel designs.
• Variable
wheel widths / diameters and a choice of four
outlet sizes and six inlet sizes enable efficient fan selection across
a wide
range of volumes and pressures.
• Choice of fan
arrangements... direct-drive and belt-drive
blowers.
• Wide
application range... designed for continuous
operation in combustion, cooling, conveying, drying, dust collection,
grinding
booth exhaust, scrubber / absorber exhaust, paper trim systems, sawdust
and
woodchip conveying.
• Base mounting
slots for ease of retrofit applications.
CONSTRUCTION
FEATURES
• All-welded
steel housings... heavy-gauge fan housings are
designed specifically to prevent “flexing” at high pressures.
• Balance...
all blower wheels are precision-balanced prior
to assembly... fans with mounted motors and drives are given a final
trim
balance check at the specified running speed.
• Shafting...
straightened to close tolerance to minimize
“run-out” and ensure smooth operation.
• Inlet
configuration... a choice of two inlet types allows
units to be tailored to specific application requirements.
• Lifting eyes
... standard on all units for ease of
handling and installation.
• Finish...
green industrial powder coating over an abrasive
mechanical blast.
• Companion
flanges... Designed to fit flush with fan inlet
and outlet flanges, provided with a matching hole pattern.
• Drains...
Pipe nipple or tank flange (welded to the lowest
point of the housing scroll).
• Inlet
filters... Filters are available with a choice of
three element types: wire mesh, hi-flow polyester, and ultra-synthetic.
High-efficiency filter is flange-mounted. Furnished standard with
outboard
support bracket and available with or without protective hood.
• Silencers...
Available to match standard inlet or outlet
flange sizes. Heavy-welded construction filled with high-density,
acoustical
absorption material.
• Inlet /
Outlet Fan Dampers... Available as either slide
gate for fixed damper control (inlet) or as a separate wafer design
(inlet or
outlet) for variable flow ventilation applications.
• Shaft
seals... Ceramic-felt shaft seals consist of
compressed ceramic felt elements. Lubricated lip seals [Buna, Teflon,
and
Viton] and gas-purgeable, segmental bushing seals are also available.
• Heat fan
construction... Available on Arrangements 1 and 9
steel wheel Compact Pressure Blowers up to 600°F. Modifications
include shaft
cooler and shaft-cooler guard.
• Low leakage
construction... Special construction to
minimize leakage includes lip-type shaft seal, non-rotatable housing
with solid
drive side, and neoprene gasketing. Maximum temperature 200°F due
to gasketing
limitations. Not available with heat-fan construction.
• Special alloy
construction... Airstream components can be
constructed of a wide range of alternate alloys for corrosive
applications.
